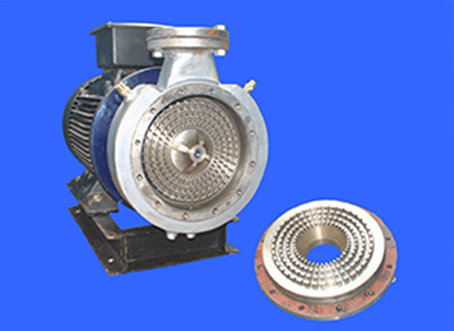

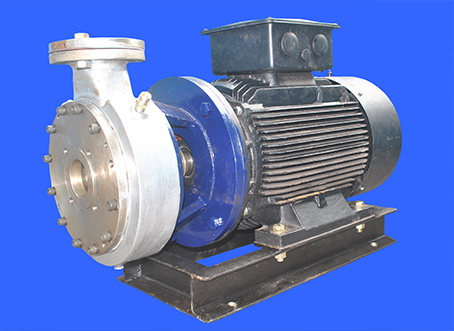

Colloid Mill Unit

  • Duty

    High Shear Homogenization of Bitumen Emulsion

  • Product Characteristics
    • Liquids
    • Bitumen / Soap
    • Flow rate
    • 2- 6 Ton/Hr
    • Viscosity
    • 10 -210 (cP)
    • Emulsion particle size
    • 2 —2.5 μ
  • Technical Specification
    • Model No.
    • RE200-2 RE400
    • Tool and Housing Unit
    • Tooth and chamber tools 4 rotor and 4 stator steps Tool material SS316L
      Housing ring and stator support
      Suction Flange connection 1"-4"
      Pressure Flange connection 1"- 4"
      Drainage via outflow opening; closed by plug 112' BSP a-rings material silicon
      Heating jacket housing Connecting flanges for heating medium in/out { ( l/2 )‘ - ( 1 “ ) } BSP
Sl,No. Model No. Flow rate (MT/Hr.) Motor KW Motor rpm
01. RE-200 1-3 7.5 3000
02. RE-250 2-6 15
03. RE-300 4-12 30
04. RE-360 5-15 45
05. RE-400 5-20 55
