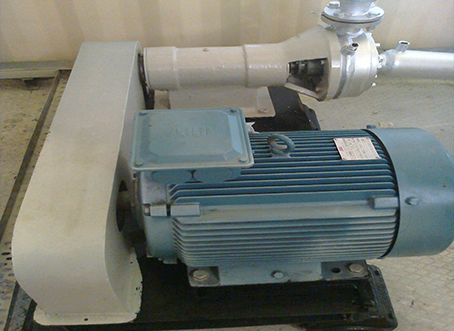

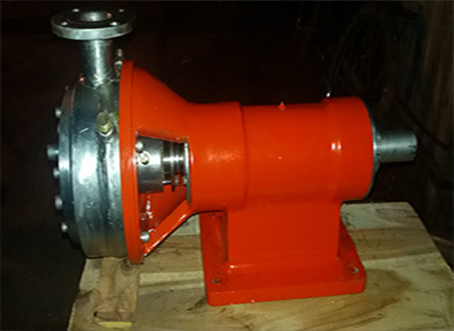

CRMB/PMB Mill Unit (High Shear)

  • Duty

    High Shear grinding & dispersing of CRMB I PMB and bitumen

    Grinding and homogenization of polymer (SBS, APP etc.) and bitumen

  • Product Characteristics
    1- Premix of Bitumen & Rubber Crumb
    • Flow rate upto
    • 15 Ton/Hr.
    • Temperature
    • > 190’ C
    • Solids Portion
    • upto 16% by mass

    2- Premix of Bitumen & Polymer
    • Flow rate upto
    • 15 Ton/Hr.(single pass)
    • Temperature
    • > 190’ C
    • Solids Portion
    • upto 7% by mass (2.5%SBS - 4.5% rec. polymer)
  • Technical Specification
    • Model No.
    • RE200 H - RE400 H
    • Tool and Housing Unit
    • Tooth and chamber tools 4 rotor and 4 stator steps Tool material HCHC
      Housing ring and stator support
      Suction Flange connection 1"-4"
      Pressure Flange connection 1"- 4"
      Drainage via outflow opening; closed by plug 1/2" BSP O-rings material silicon
      Heating jacket housing Connecting flanges for heating medium in/out { ( l/2 )" - ( 1 “ ) } BSP
Sl,No. Model No. Flow rate (MT/Hr.) Motor KW Motor rpm
01. RE-200 H 1-3 15 4200
02. RE-250 H 2-6 20
03. RE-300 H 4-12 45
04. RE-360 H 5-15 55
05. RE-400 H 5-20 75
